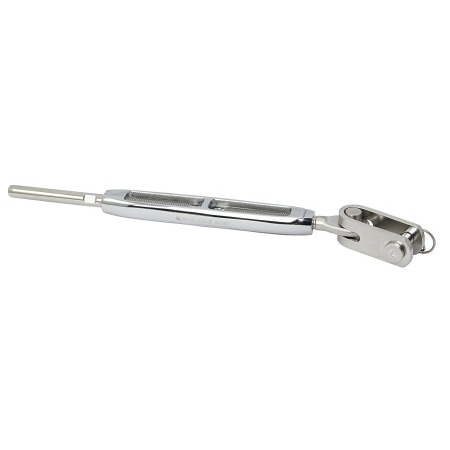

rigging screw - fine thread - Terminal / Toggle
open body in bronze with terminal / toggle in AISI 316

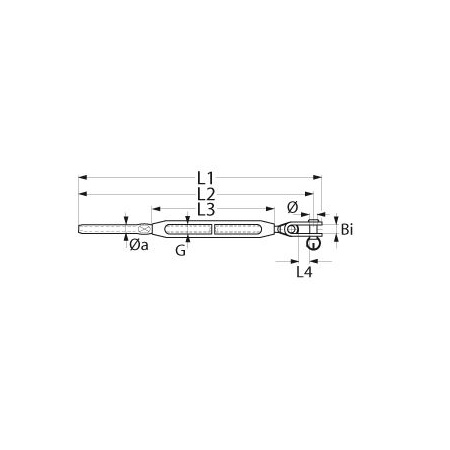

| Art.-No. | G UNF | L1 mm | L2 mm | L3 mm | L4 mm | Øa mm | Ø mm | Bi mm | wirerope-Ø mm | BRL kg |
| 1/4" | 255 | 193 | 100 | 13,8 | 6,35 | 6,35 | 8,0 | 3 mm | 1300 | |
| 5/16" | 304 | 228 | 120 | 16,0 | 7,50 | 8,00 | 10,0 | 4 mm | 1700 | |
| 5/16" | 310 | 234 | 120 | 16,0 | 9,00 | 8,00 | 10,0 | 5 mm | 2200 | |
| 3/8" | 349 | 265 | 135 | 21,2 | 9,00 | 9,50 | 12,0 | 5 mm | 2400 | |
| 3/8" | 364 | 280 | 135 | 21,2 | 12,58 | 9,50 | 12,0 | 6 mm | 3400 | |
| 7/16" | 397 | 307 | 150 | 22,5 | 12,58 | 11,00 | 15,0 | 6 mm | 4600 | |
| 1/2" | 425 | 319 | 170 | 28,5 | 12,58 | 12,70 | 18,0 | 6 mm | 5400 | |
| 7/16" | 408 | 318 | 150 | 22,5 | 14,20 | 11,00 | 15,0 | 7 mm | 4600 | |
| 1/2" | 433 | 327 | 170 | 28,5 | 14,20 | 12,70 | 18,0 | 7 mm | 6100 | |
| 5/8" | 536 | 404 | 210 | 33,0 | 16,00 | 16,00 | 20,0 | 8 mm | 8700 | |
| 5/8" | 545 | 413 | 210 | 33,0 | 17,80 | 16,00 | 20,0 | 10 mm | 9700 | |
| 3/4" | 625 | 465 | 250 | 35,5 | 17,80 | 19,00 | 24,0 | 10 mm | 9700 | |
| 3/4" | 640 | 480 | 250 | 35,5 | 21,40 | 19,00 | 24,0 | 12 mm | 11400 |
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
