rigging screw - metric thread - Fork / Fork

thumb
thumb
thumb

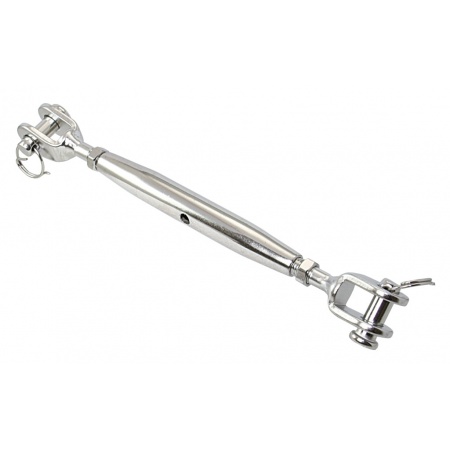

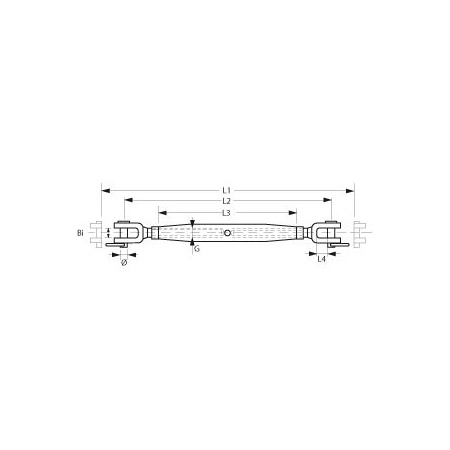

BLUE WAVE Rigging Screw
Fork / Fork
Stainless steel AISI 316
Art.-No.Length max.
bolt - bolt		Length min.
bolt - bolt		threadbolt Ø
mm		fork width
mm		BRL
kN
180126M55,07,57,8
200138M65,07,512,2
202140M66,09,512,7
234158M86,09,512,7
240166M88,011,023,0
272188M108,011,023,0
280196M109,512,034,3
350244M1212,014,050,0
370269M1214,018,050,0
387267M1412,014,057,8
405295M1414,018,057,8
442309M1614,022,078,4
446313M1614,018,078,4
550390M2019,024,0127,4
769536M2425,430,0196,1
thumb
thumb

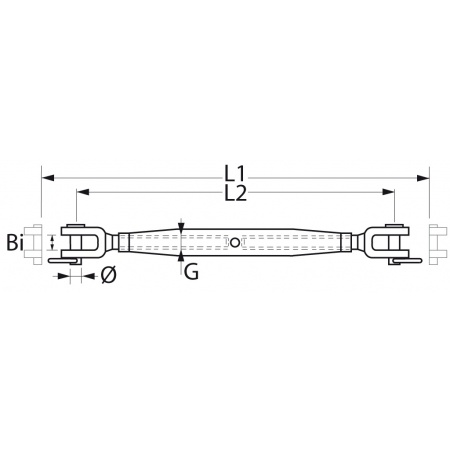

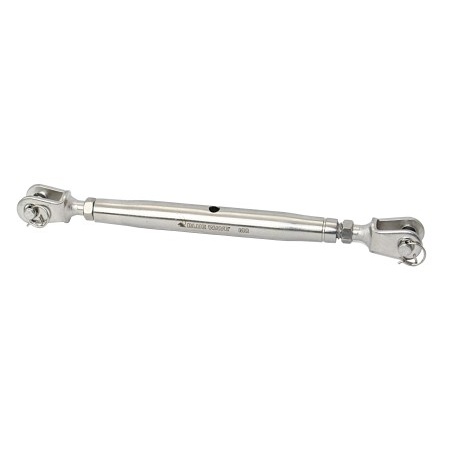

Rigging Screw Fork / Fork
Stainless steel AISI 316
Far-East import
Art.-No.Length max.
bolt - bolt		Length min.
bolt - bolt		threadbolt Ø
mm		fork width
mm		BRL
kN
190130M55,06,07,4
220150M66,07,010,7
255180M88,010,519,4
300220M109,011,530,4
385270M1212,013,544,9

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
