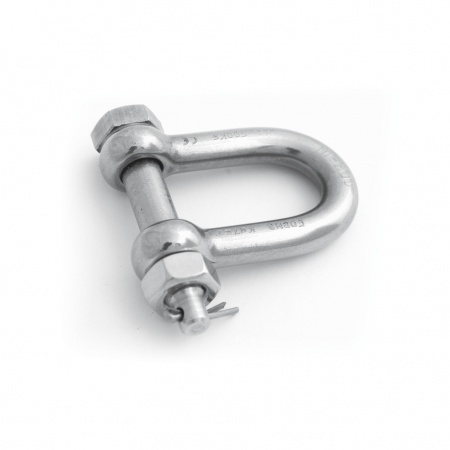

High Tensile Shackles - D Shackle with Safety Pin

Product Features
Manufactured from Stainless Steel EN10088 1.4404 (Marine Grade 316L)
Excellent for lifting applications where a high level of corrosion resistance is required.
Factor of Safety 6:1

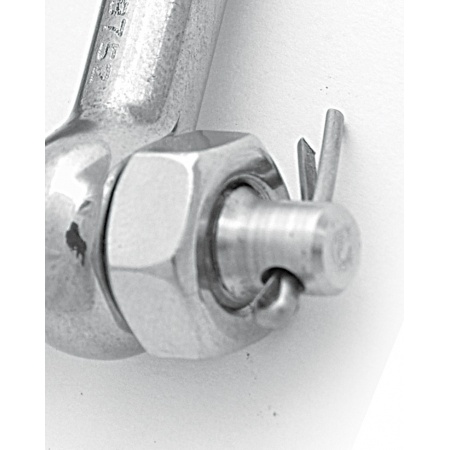

Available with 2 pin types - E Type Safety Pin with Standard Nut (E Type) or Nylok Nut (E Type-NY)
Special design of bolt ensures the nut is positioned correctly allowing sufficient room for the cotter pin

Quality Features
Every shackle is proof tested to 2 x WLL and certified at our manufacturing
facility in the North East of England
All shackles are manufactured in accordance with the Machine
Directive 2006/42/EC
Inspection certificate BS EN 10204 3.1b available on request
High quality finish and excellent polish
Manufactured using the latest technology in electrical upset forging

Typical Applications
Water utility installations & other corrosive facilities
Pump chains and pump lifting
Chemical installations - Chlorine plants etc
General lifting in off-shore applications
General lifting and tethering in leisure marine applications
General lifting purposes

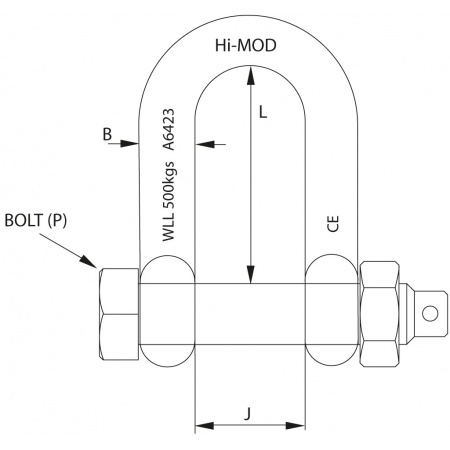

Art.-No. E-Type	Pin Ø mm P	Material strength B	width J	length inside L	WWL kg	weight g
PG82M06E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 6mm, Price (EUR): € 23,50 per pc. procurement goods	M6	6,0 mm	13,0 mm	25,0 mm	350 kg	48 g
PG82M08E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 8mm, Price (EUR): € 28,50 per pc. on stock	M8	8,0 mm	16,0 mm	32,0 mm	500 kg	75 g
PG82M10E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 10mm Price (EUR): € 44,00 per pc. on stock	M10	9,5 mm	19,0 mm	38,0 mm	800 kg	136 g
PG82M11E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 11mm Price (EUR): € 51,50 per pc. procurement goods	M12	11,0 mm	22,0 mm	44,0 mm	1000 kg	212 g
PG82M12E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 12mm Price (EUR): € 71,50 per pc. on stock	M12	12,7 mm	26,0 mm	52,0 mm	1250 kg	331 g
PG82M16E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 16mm Price (EUR): € 128,50 per pc. procurement goods	M16	14,3 mm	29,0 mm	58,0 mm	1800 kg	585 g
PG82M20E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 20mm Price (EUR): € 224,00 per pc. procurement goods	M20	16,0 mm	32,0 mm	64,0 mm	2800 kg	760 g
PG82M22E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 22mm Price (EUR): € 262,00 per pc. procurement goods	M22	19,0 mm	38,0 mm	76,0 mm	3300 kg	1180 g
PG82M24E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 24mm Price (EUR): € 331,50 per pc. procurement goods	M24	22,0 mm	44,0 mm	88,0 mm	4500 kg	1750 g
PG82M27E PETERSEN Rundschäkel mit Mutter und Splint A4L Pin 27mm Price (EUR): € 526,50 per pc. procurement goods	M27	25,4 mm	50,0 mm	100,0 mm	5000 kg	2600 g

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
