High Tensile Shackles - Bow Shackle

Type A

Type Athumb

Type C

Type Cthumb

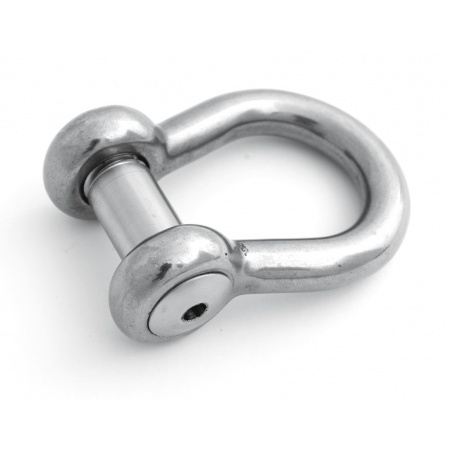

Type B

Type Bthumb

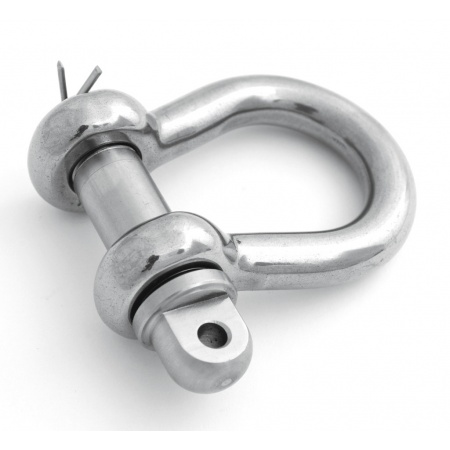

Type E

Type Ethumb
Type Ethumb
Product Features
Manufactured from 17/4PH precipitation hardening martensitic stainless steel
Excellent for general lifting applications - high tensile properties while avoiding work hardening Corrosion resistance similar to 18/8 grade steels
Factor of Safety 6:1
Available with 4 pin types - Standard Screw Collar Pin (A Type), Extended Screw
Collar Pin (AL Type), Countersunk Head (B Type), E Type Safety Pin (E Type)
Manufactured using the latest technology in electrical upset forging
Quality Features
Every shackle is proof tested to 2 x WLL and certified at our manufacturing facility in the North East of England
All shackles are manufactured in accordance with the Machine Directive 2006/42/EC
Inspection certificate BS EN 10204 3.1b available on request
High quality finish and excellent polish

Typical Applications
General lifting in off-shore applications
General lifting and tethering in leisure
marine applications
General lifting purposes
Art.-No.
A-Type
Art.-No.
C-Type
Art.-No.
B-Type
Art.-No.
E-Type
Pin Ø
mm
P
Material
strength
B
width
J
width
inside
W
length
inside
L
WWL
t
weight
g
10,08,0 mm16,0 mm24,0 mm32,0 mm0,8 t90 g
12,710,0 mm20,0 mm30,0 mm40,0 mm1,5 t158 g
16,012,7 mm25,0 mm38,0 mm50,0 mm2,5 t368 g
19,016,0 mm32,0 mm48,0 mm64,0 mm4,0 t578 g
22,219,0 mm38,0 mm57,0 mm76,0 mm5,5 t1050 g
25,422,2 mm44,0 mm66,0 mm88,0 mm7,5 t1995 g
28,625,4 mm51,0 mm76,0 mm102,0 mm9,0 t3045 g
31,828,6 mm57,0 mm86,0 mm114,0 mm11,0 t3255 g
34,931,8 mm64,0 mm95,0 mm128,0 mm13,0 t4568 g
38,034,9 mm70,0 mm105,0 mm140,0 mm15,0 t5565 g

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
