Snap hooks - Safety carbine hook - with Screw Lock asymmetric

thumb
thumb

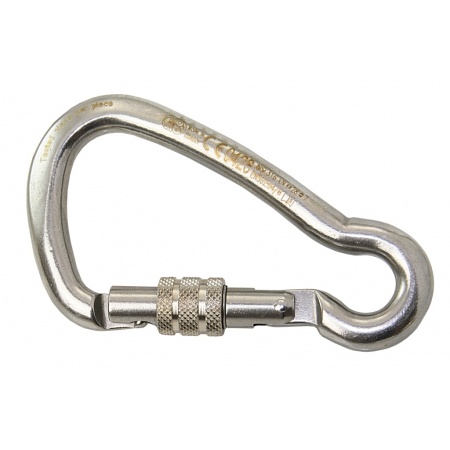

Asymmetrical carbine hook made of stainless steel and features a screw lock. The KEY-Lock closure increases user-friendliness and reduces the risk of injury. The sizes 100 and 120 mm are certified according to CE EN 362/B.
Art.-No.length
mm		material strength
mm		Opens
mm		BRL
kN
80,08,015,015,0-
100,010,017,022,0CE EN362/B
120,012,024,028,0CE EN362/B
thumb
thumb

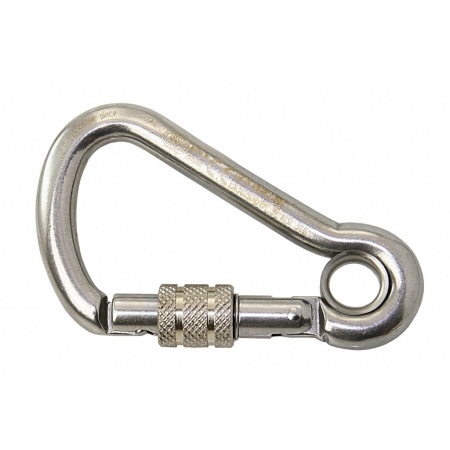

Asymmetrical carbine hook made of stainless steel and features a screw lock and an eyelet. The KEY-Lock closure increases user-friendliness and reduces the risk of injury. The size 100 mm are certified according to CE EN 362/B.
Art.-No.length
mm		material strength
mm		Opens
mm		BRL
kN
80,08,015,015,0-
100,010,017,022,0CE EN362/B
thumb
thumb

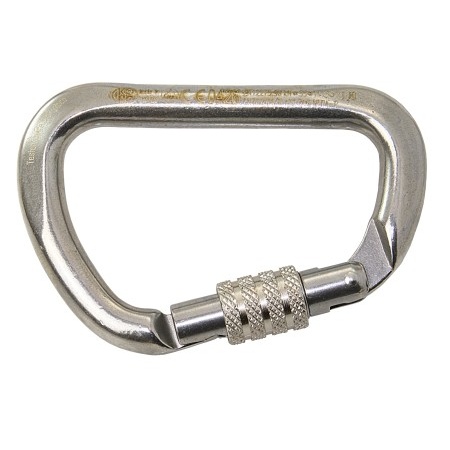

Asymetrical carbine hook made of stainless steel with large opening, screw lock and high breaking load. The special D-shape prevents rotating of the carbine hook and allows better load distribution along the longer axis. The KEY-Lock closure increases user-friendliness and reduces the risk of injury.
Certified according to CE EN 12275, CE EN 362 / B and UIAA.
Art.-No.length
mm		Material strength
mm		open
mm		BRL
kN
113 mm12 mm26 mm34,9 kNCE EN 12275, CE EN 362/B

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
