safety pins - clevis pins

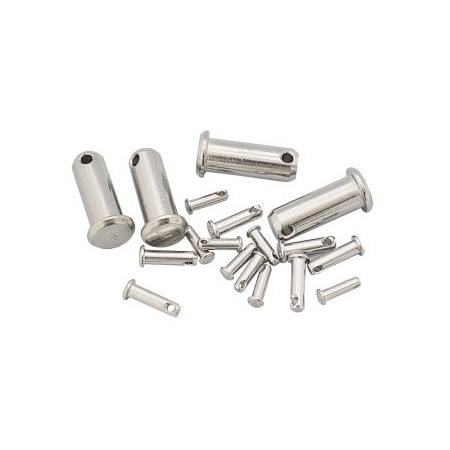

Clevis pins in stainless steel AISI316
packs by 10 or 100 pieces
packs by 10 or 100 pieces

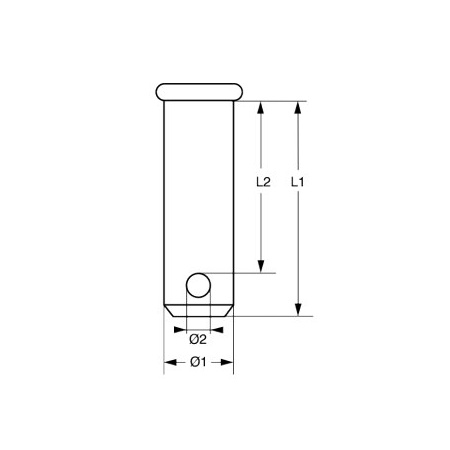

| Art.-No. VP à 10 | Art.-No. VP à 100 | Ø1 mm | Ø1 inch | L1 mm | L2 mm | Ø2 mm |
| 4 | 1/6" | 14 | 11 | 2 | ||
| 4 | 1/6" | 20 | 16 | 2 | ||
| 5 | 3/16" | 16 | 11 | 2,5 | ||
| 5 | 3/16" | 18 | 14 | 2,5 | ||
| 5 | 3/16" | 21 | 17 | 2,5 | ||
| 5 | 3/16" | 28 | 24 | 2,5 | ||
| 6 | 1/4" | 15 | 11 | 2,5 | ||
| 6 | 1/4" | 20 | 16 | 2,5 | ||
| 6 | 1/4" | 25 | 21 | 2,5 | ||
| 6 | 1/4" | 29 | 25 | 2,5 | ||
| 6 | 1/4" | 36 | 32 | 2,5 | ||
| 6 | 1/4" | 45 | 41 | 2,5 | ||
| 6 | 1/4" | 52 | 48 | 2,5 | ||
| 8 | 5/16" | 22 | 17 | 2,5 | ||
| 8 | 5/16" | 25 | 20 | 2,5 | ||
| 8 | 5/16" | 28 | 23 | 2,5 | ||
| 8 | 5/16" | 32 | 28 | 2,5 | ||
| 8 | 5/16" | 36 | 33 | 2,5 | ||
| 9,5 | 27 | 22 | 3 | |||
| 9,5 | 31 | 26 | 3 | |||
| 10 | 3/8" | 27 | 22 | 3 | ||
| 11 | 7/16" | 30 | 24 | 3,5 | ||
| 12 | 1/2" | 32 | 26 | 4 | ||
| Steckbolzen, per Stück | ||||||
| lose | 12,5 | 1/2" | 36 | 32 | 3,5 | |
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
